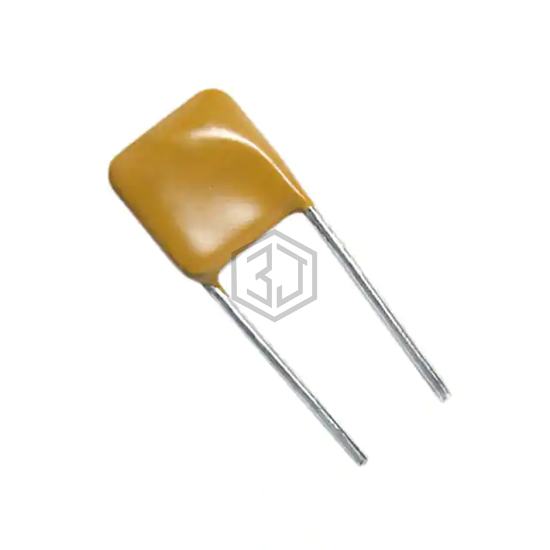

PTC RESET FUSE 32V 3A RADIAL
AHEF300 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 32V 3A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 1,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 32V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 35 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.402" L x 0.150" W (10.20mm x 3.80mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
Submit your RFQ for AHEF300 and get a quote within 24 hours.
