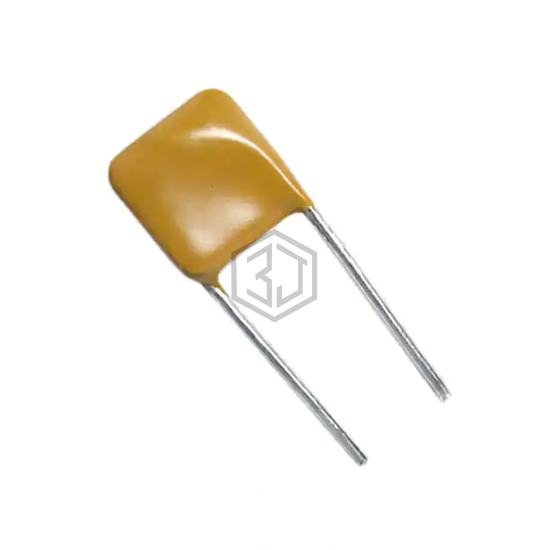

PTC RESET FUSE 32V 10A RADIAL
AHEF1000 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 32V 10A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 100 A.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 32V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 10 A |
| Current - Trip (It) | 20 A |
| Time to Trip | 15 s |
| Resistance - Initial (Ri) (Min) | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | 16 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.925" L x 0.157" W (23.50mm x 4.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.15mm) |
Submit your RFQ for AHEF1000 and get a quote within 24 hours.
