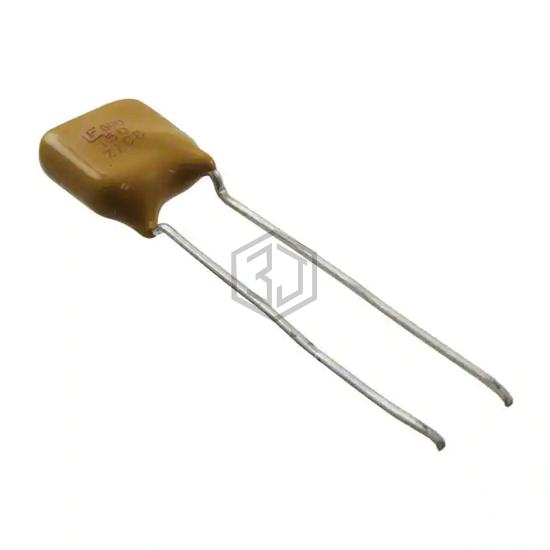

PTC RESET FUSE 60V 150MA RADIAL
600R150-RAZR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 150MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 3 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymeric |
| Voltage - Max | 60V (600V Int) |
| Current - Max | 3 A |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Trip (It) | 300 mA |
| Time to Trip | 4 s |
| Resistance - Initial (Ri) (Min) | 7 Ohms |
| Resistance - Post Trip (R1) (Max) | 20 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.354" L x 0.181" W (9.00mm x 4.60mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
