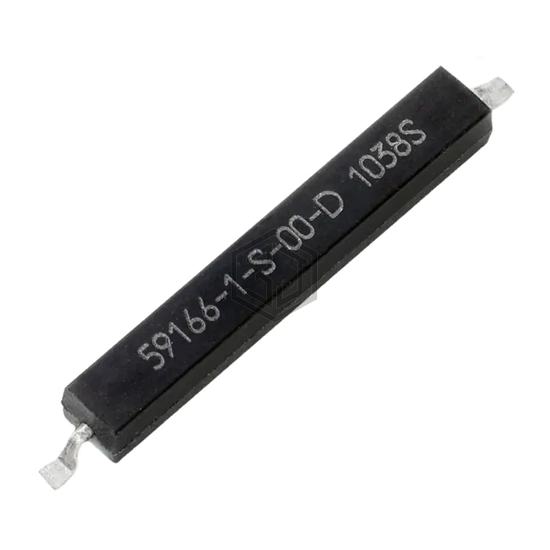

SWITCH REED SPST-NO 350MA 140V
59166-1-U-00-D is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 350MA 140V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Gull Wing, power - rated 10W.
In Stock: 1,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 20 ~ 25AT |
| Release Range | - |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.805" (20.45mm) |
| Size - Body | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) |
| Height Above Board | 0.099" (2.52mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | 0.3 pF |
| Current - Carry | 800mA (DC) |
Submit your RFQ for 59166-1-U-00-D and get a quote within 24 hours.
