SWITCH REED SPST-NO 350MA 140V

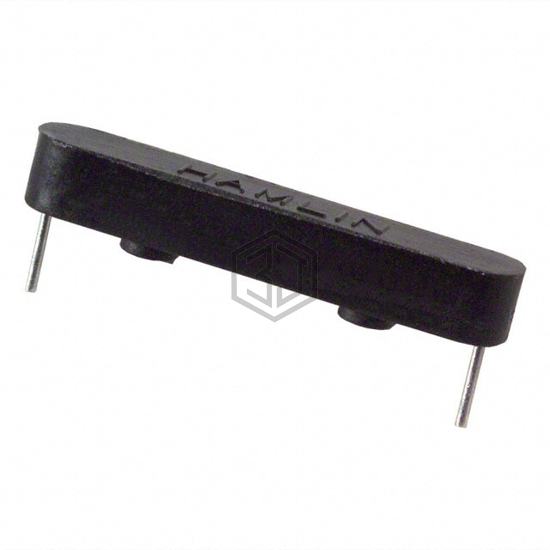

59050-010 is a Magnetic, Reed Switches manufactured by Littelfuse Inc.. SWITCH REED SPST-NO 350MA 140V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, termination style PC Pin, power - rated 10W.
In Stock: 8,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 20AT |
| Release Range | - |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 1 ms |
| Release Time | 1 ms |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Length - Overall | 0.900" (22.86mm) |
| Size - Body | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) |
| Height Above Board | 0.180" (4.57mm) |
| Operating Temperature | -40°C ~ 105°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1A (DC) |
Submit your RFQ for 59050-010 and get a quote within 24 hours.
