5582
SWITCH TGL SPST

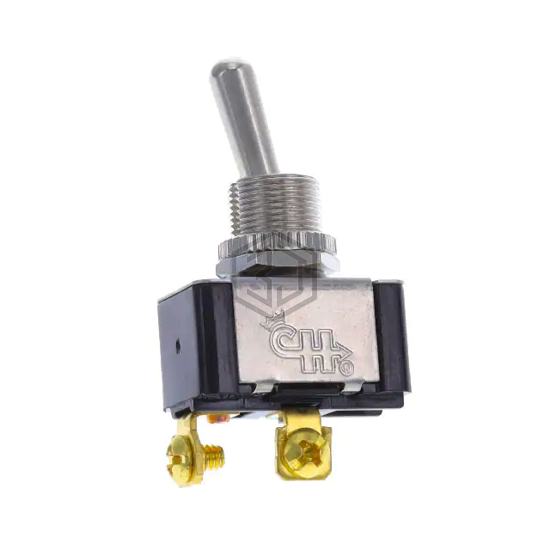

5582 is a Toggle Switches manufactured by Littelfuse Inc.. SWITCH TGL SPST. Key specifications: mounting type Panel Mount, voltage rating - dc 12 V, current rating (amps) 25A (DC), termination style Screw Terminal.
In Stock: 498
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 25A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 12 V |
| Actuator Type | Standard Round |
| Actuator Length | 17.52mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Screw Terminal |
| Panel Cutout Dimensions | Circular - 11.90mm Dia |
| Bushing Thread | 15/32-32 |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | - |
Frequently Asked Questions
5582 is a Toggle Switches manufactured by Littelfuse Inc.. SWITCH TGL SPST
The mounting type of 5582 is Panel Mount.
The supply voltage of 5582 is 12 V.
The current rating of 5582 is 25A (DC).
The circuit configuration of 5582 is SPST.
