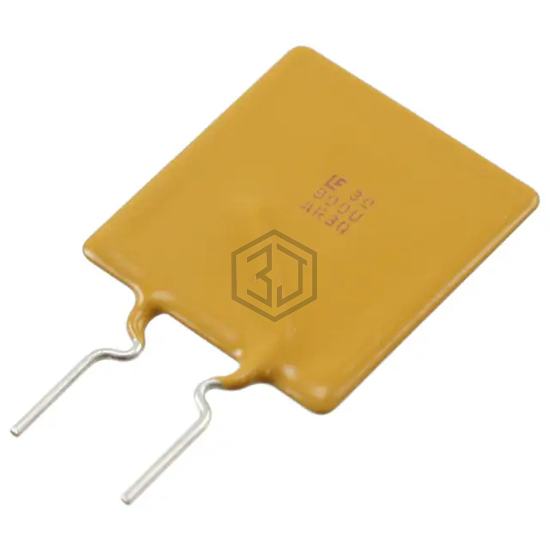

PTC RESET FUSE 30V 9A RADIAL
30R900UMR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 30V 9A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 13,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 9 A |
| Current - Trip (It) | 18 A |
| Time to Trip | 20 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.950" L x 0.120" W (24.10mm x 3.00mm) |
| Height - Seated (Max) | 1.244" (31.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.402" (10.20mm) |
Submit your RFQ for 30R900UMR and get a quote within 24 hours.
