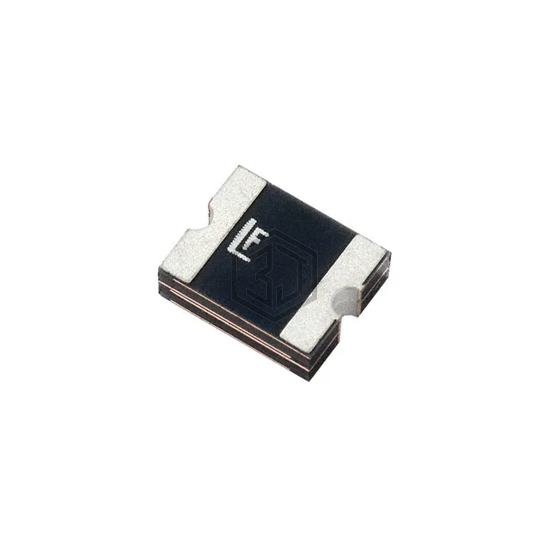

PTC RESET FUSE 33V 1.1A 2016
2016L100/33DR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 33V 1.1A 2016. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2016 (5041 Metric), Concave, current - max 40 A.
In Stock: 20,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 400 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2016 (5041 Metric), Concave |
| Size / Dimension | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
