PTC RESET FUSE 60V 300MA 2016

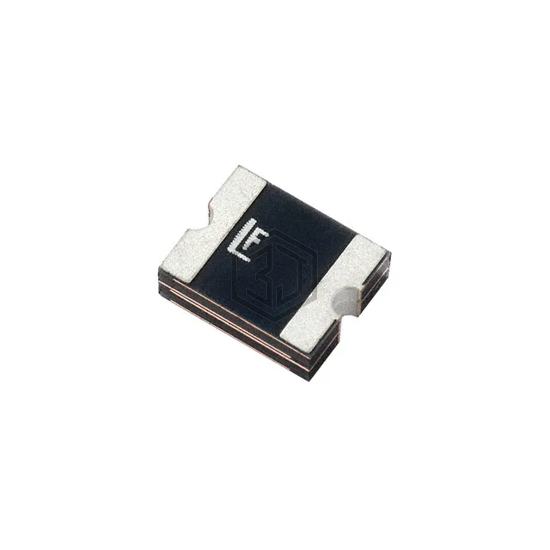

2016L030DR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 300MA 2016. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2016 (5041 Metric), Concave, current - max 20 A.
In Stock: 23,280
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Trip (It) | 600 mA |
| Time to Trip | 3 s |
| Resistance - Initial (Ri) (Min) | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.3 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2016 (5041 Metric), Concave |
| Size / Dimension | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
Submit your RFQ for 2016L030DR and get a quote within 24 hours.
