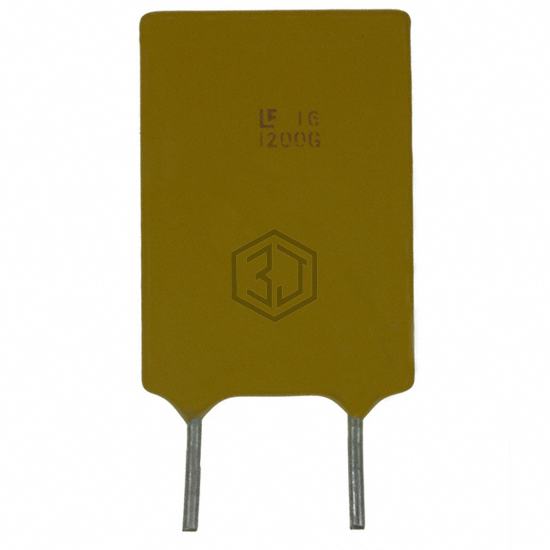

PTC RESET FUSE 16V 12A RADIAL
16R1200GH is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 12A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 100 A.
In Stock: 143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 12 A |
| Current - Trip (It) | 20.4 A |
| Time to Trip | 7.5 s |
| Resistance - Initial (Ri) (Min) | 3.3 mOhms |
| Resistance - Post Trip (R1) (Max) | 8.6 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.689" L x 0.138" W (17.50mm x 3.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.402" (10.20mm) |
Submit your RFQ for 16R1200GH and get a quote within 24 hours.
