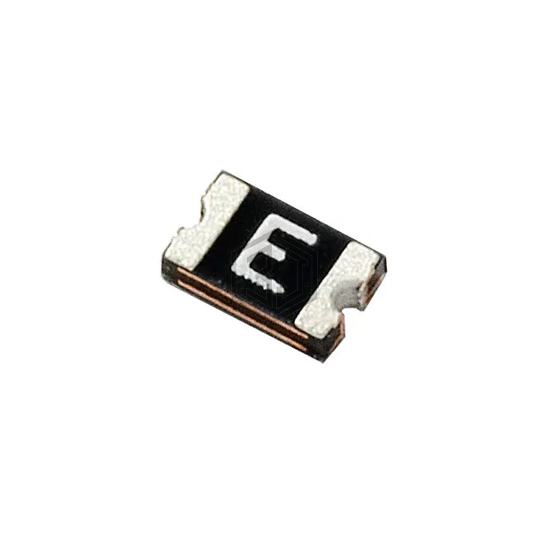

PTC RESET FUSE 3.0A 6V 0603
0805L300SLTHYR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 3.0A 6V 0603. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), Concave, current - max 50 A.
In Stock: 3,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 50 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 30 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
Submit your RFQ for 0805L300SLTHYR and get a quote within 24 hours.
