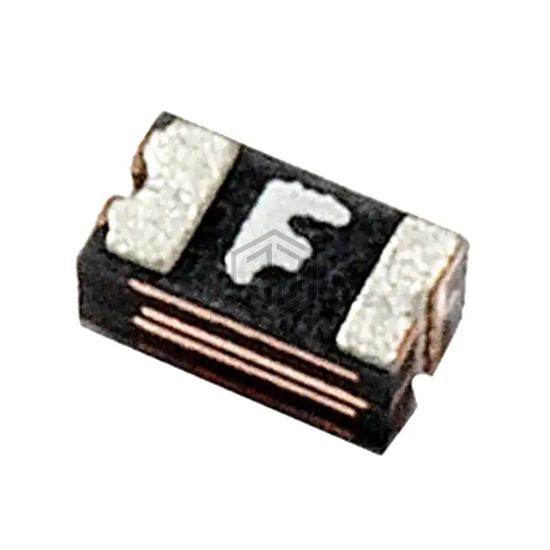

PTC RESET FUSE 36V 30MA 0603
0603L003/36YR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 36V 30MA 0603. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), Concave, current - max 40 A.
In Stock: 6,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 36V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Trip (It) | 90 mA |
| Time to Trip | 1 s |
| Resistance - Initial (Ri) (Min) | 6 Ohms |
| Resistance - Post Trip (R1) (Max) | 50 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
Submit your RFQ for 0603L003/36YR and get a quote within 24 hours.
