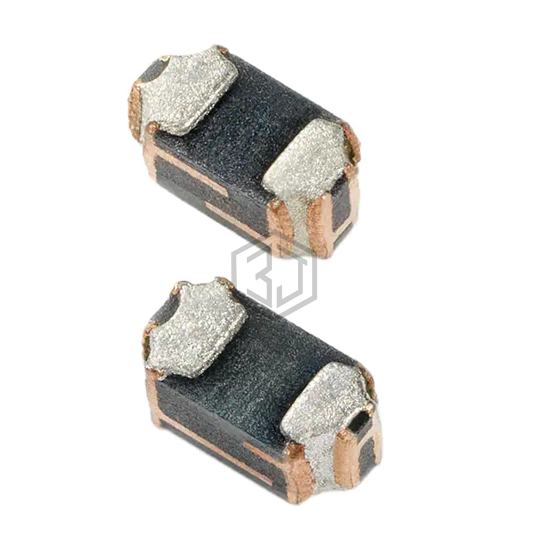

PTC 6V POLYFUSE SMT 0402 SL 0.75
0402L075SLKR is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC 6V POLYFUSE SMT 0402 SL 0.75. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0402 (1005 Metric), Concave, current - max 40 A.
In Stock: 19,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 300 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), Concave |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.60mm) |
| Lead Spacing | - |
Submit your RFQ for 0402L075SLKR and get a quote within 24 hours.
