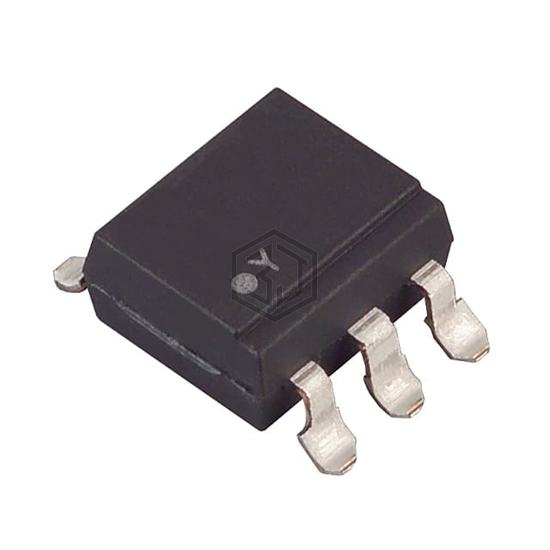

OPTOISOLATOR 5KV TRIAC 6SMD
MOC3063S is a Optoisolators - Triac, SCR Output manufactured by Lite-On Inc.. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.
In Stock: 29,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 400µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Approval Agency | CSA, FIMKO, UL |
