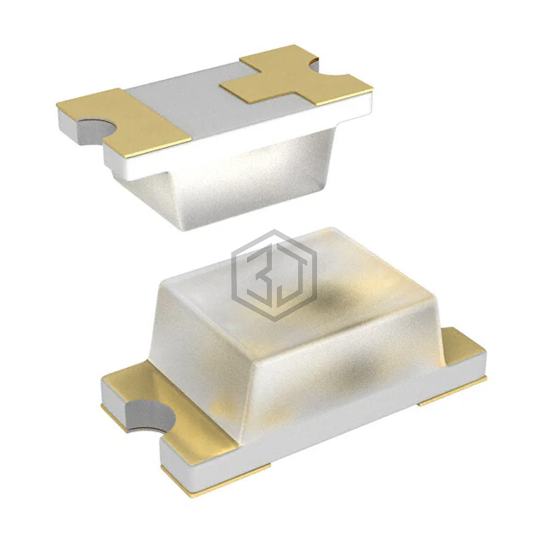

LED GREEN/RED CLEAR CHIP SMD
LTST-C295KGKRKT is a LED Indication - Discrete manufactured by Lite-On Inc.. LED GREEN/RED CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 0603 (1608 Metric), color Green, Red.
In Stock: 24,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 35mcd Green, 45mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 571nm Green, 631nm Red |
| Wavelength - Peak | 574nm Green, 639nm Red |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm |
