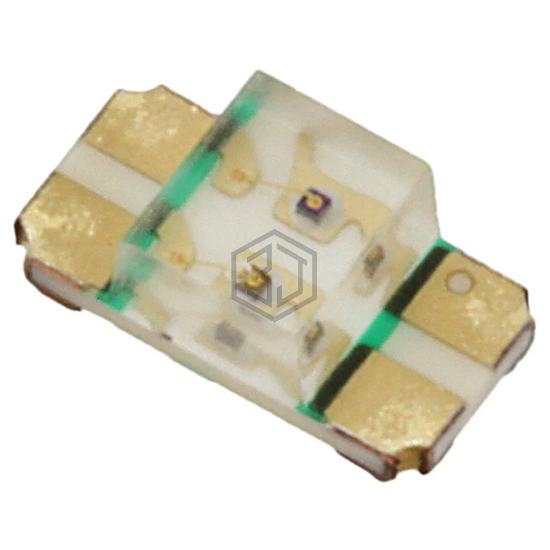

LED GREEN/RED CLEAR CHIP SMD
LTST-C235KGKRKT is a LED Indication - Discrete manufactured by Lite-On Inc.. LED GREEN/RED CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 1206 (3216 Metric), color Green, Red.
In Stock: 409,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 35mcd Green, 45mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 571nm Green, 631nm Red |
| Wavelength - Peak | 574nm Green, 639nm Red |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for LTST-C235KGKRKT and get a quote within 24 hours.
