LED BLUE/GRN/ORG DIFF CHIP SMD

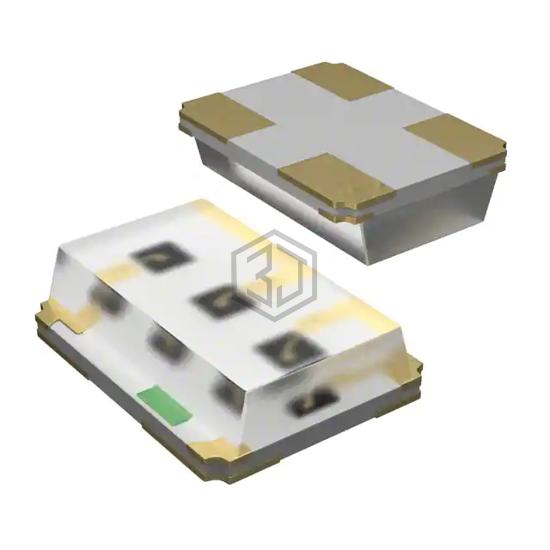

LTST-C19FD1WT is a LED Indication - Discrete manufactured by Lite-On Inc.. LED BLUE/GRN/ORG DIFF CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.5V Blue, 3.5V Green, 2V Orange, package / case 4-SMD, No Lead, color Blue, Green, Orange.
In Stock: 196,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Green, Orange |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 104mcd Blue, 261mcd Green, 113mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 3.5V Blue, 3.5V Green, 2V Orange |
| Current - Test | 20mA Blue, 20mA Green, 20mA Orange |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 525nm Green, 605nm Orange |
| Wavelength - Peak | 468nm Blue, 520nm Green, 611nm Orange |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 2.10mm L x 1.60mm W |
| Height (Max) | 0.55mm |
Submit your RFQ for LTST-C19FD1WT and get a quote within 24 hours.
