LED GREEN/YELLOW CLEAR CHIP SMD

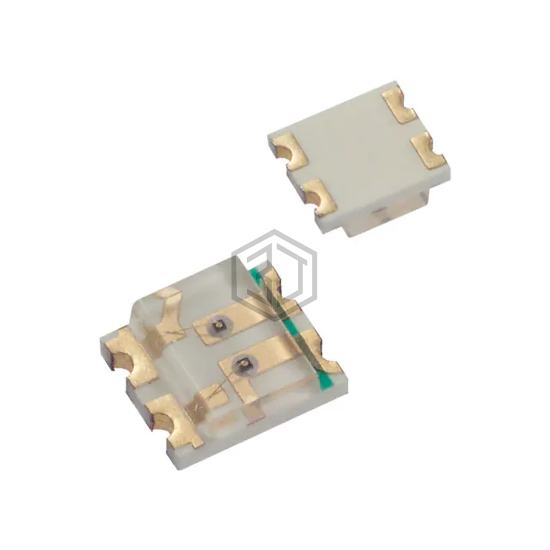

LTST-C155KGJSKT is a LED Indication - Discrete manufactured by Lite-On Inc.. LED GREEN/YELLOW CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Yellow, package / case 1210 (3225 Metric), color Green, Yellow.
In Stock: 16,912
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 35mcd Green, 30mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 571nm Green, 589nm Yellow |
| Wavelength - Peak | 574nm Green, 591nm Yellow |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for LTST-C155KGJSKT and get a quote within 24 hours.
