LED GREEN/YELLOW CLEAR CHIP SMD

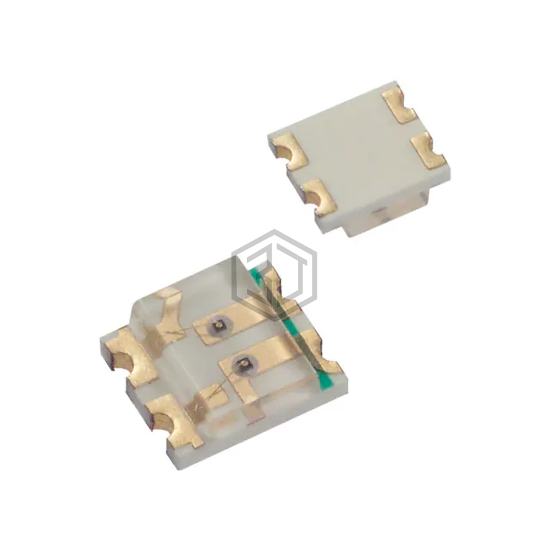

LTST-C155GYKT is a LED Indication - Discrete manufactured by Lite-On Inc.. LED GREEN/YELLOW CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 2.1V Yellow, package / case 1210 (3225 Metric), color Green, Yellow.
In Stock: 55,942
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 6mcd Green, 2.5mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow |
| Current - Test | 10mA Green, 10mA Yellow |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 569nm Green, 588nm Yellow |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for LTST-C155GYKT and get a quote within 24 hours.
