LED CBI 3MM RED-ORN/GREEN DIFF

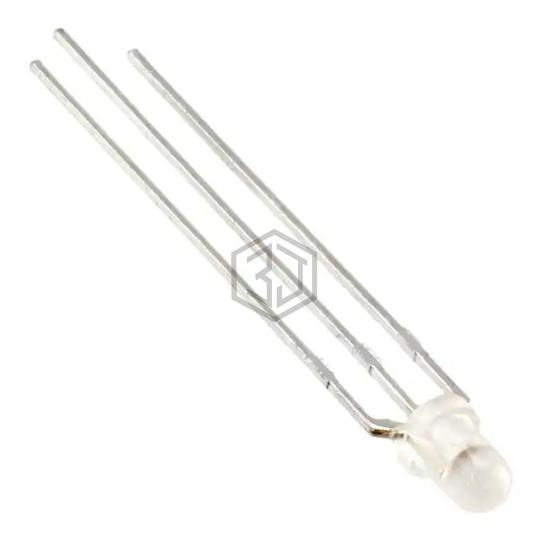

LTL-1BEHJ is a LED Indication - Discrete manufactured by Lite-On Inc.. LED CBI 3MM RED-ORN/GREEN DIFF. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Green, 2V Orange-Red, package / case Radial - 3 Lead, Formed, color Green, Orange-Red.
In Stock: 30,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Orange-Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 19mcd Green, 19mcd Orange-Red |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Orange-Red |
| Current - Test | 20mA Green, 20mA Orange-Red |
| Viewing Angle | 75° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 573nm Green, 625nm Orange-Red |
| Wavelength - Peak | 565nm Green, 630nm Orange-Red |
| Features | - |
| Package / Case | Radial - 3 Lead, Formed |
| Supplier Device Package | 3mm |
| Size / Dimension | 3.00mm Dia |
| Height (Max) | 7.00mm |
Submit your RFQ for LTL-1BEHJ and get a quote within 24 hours.
