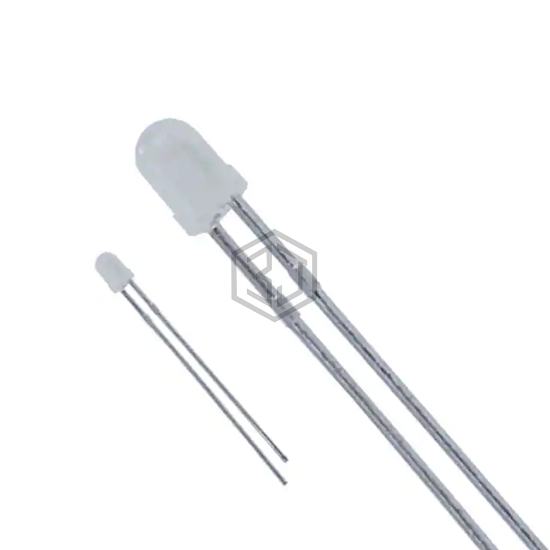

LED GREEN/RED DIFFUSED T-1 T/H
LTL-14CHJ is a LED Indication - Discrete manufactured by Lite-On Inc.. LED GREEN/RED DIFFUSED T-1 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case Radial, color Green, Red.
In Stock: 89,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 4.8mcd Green, 4.8mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 200° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 569nm Green, 621nm Red |
| Wavelength - Peak | 565nm Green, 630nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Size / Dimension | - |
| Height (Max) | 4.45mm |
