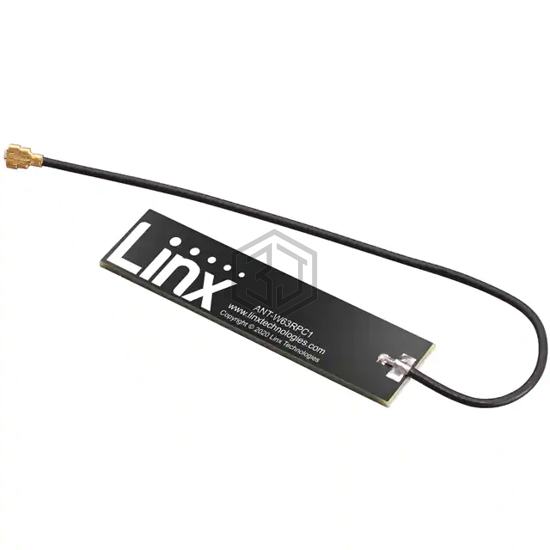

RF ANT WIFI 6GHZ FLEX UFL 100MM
ANT-W63RPC1-UFL-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT WIFI 6GHZ FLEX UFL 100MM. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 5 W, frequency range 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 552
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Rigid Patch |
| Number of Bands | 3 |
| VSWR | 1.8, 2.1, 1.6 |
| Return Loss | -10.9dB, -9dB, -12.7dB |
| Gain | 3.7dBi, 6.1dBi, 5.9dBi |
| Power - Max | 5 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.051" (1.30mm) |
| Applications | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
