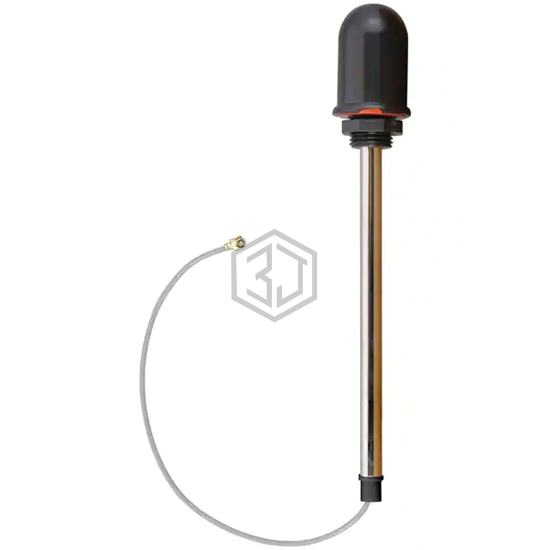

RF ANT 2.4/5/6GHZ DOME PNL MT UF
ANT-W63-WRT-UFL is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 2.4/5/6GHZ DOME PNL MT UF. Key specifications: mounting type Panel Mount, termination U.FL, ingress protection IP67, power - max 5 W.
In Stock: 989
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Dome |
| Number of Bands | 3 |
| VSWR | 1.5, 1.4, 2.2 |
| Return Loss | -14dB, -15.6dB, -8.5dB |
| Gain | 4.5dBi, 4.5dBi, 6.4dBi |
| Power - Max | 5 W |
| Features | Cable - 131mm |
| Termination | U.FL |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.094" (27.79mm) |
| Applications | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
Submit your RFQ for ANT-W63-WRT-UFL and get a quote within 24 hours.
