ANT WIFI6 2.4/5/6GHZ STAMPD TH

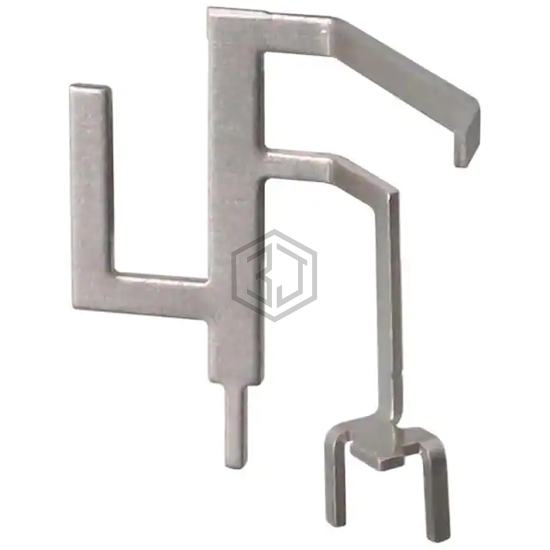

ANT-W63-MSA-TH1 is a RF Antennas manufactured by Linx Technologies Inc.. ANT WIFI6 2.4/5/6GHZ STAMPD TH. Key specifications: mounting type Surface Mount, termination Solder, power - max 1 W, frequency range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz.
In Stock: 2,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5225GHz, 6.5375GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz |
| Antenna Type | Stamped Metal |
| Number of Bands | 3 |
| VSWR | 1.9, 2.9, 3.2 |
| Return Loss | - |
| Gain | 3.5dBi, 3.8dBi, 3.8dBi |
| Power - Max | 1 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.728" (18.50mm) |
| Applications | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
Submit your RFQ for ANT-W63-MSA-TH1 and get a quote within 24 hours.
