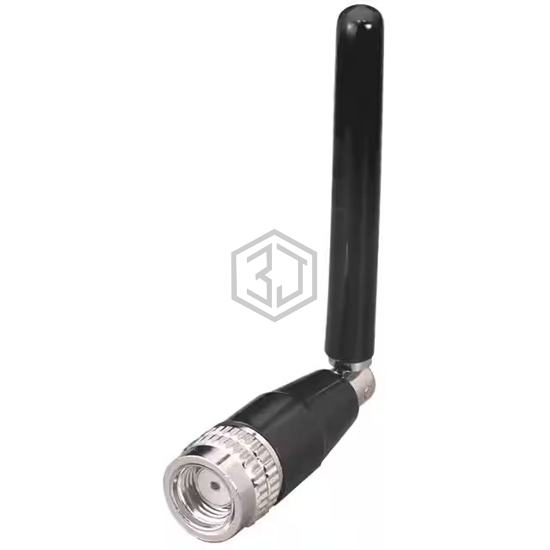

RF ANT WIFI6/6E HING WHIP RP-SMA
ANT-W63-MON-RPS is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT WIFI6/6E HING WHIP RP-SMA. Key specifications: mounting type Connector Mount, termination RP-SMA Female, power - max 5 W, frequency range 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 957
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Whip, Tilt/Swivel |
| Number of Bands | 3 |
| VSWR | 2.4, 2.3, 2 |
| Return Loss | -7.7dB, -8.1dB, -9.5dB |
| Gain | 3.2dBi, 4.2dBi, 3.4dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | RP-SMA Female |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 2.835" (72.00mm) |
| Applications | 802.11, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN, ZigBee |
Submit your RFQ for ANT-W63-MON-RPS and get a quote within 24 hours.
