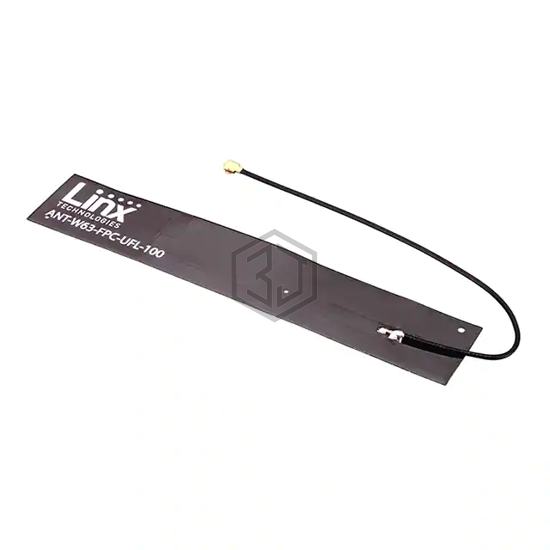

RF ANT WIFI 6GHZ FLEX ADHES UFL
ANT-W63-FPC-UFL-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT WIFI 6GHZ FLEX ADHES UFL. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 640
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 3 |
| VSWR | 1.2, 3.3, 2.6 |
| Return Loss | -20.8dB, -5.4dB, -7dB |
| Gain | 6.1dBi, 6.1dBi, 6.9dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.010" (0.20mm) |
| Applications | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
Submit your RFQ for ANT-W63-FPC-UFL-100 and get a quote within 24 hours.
