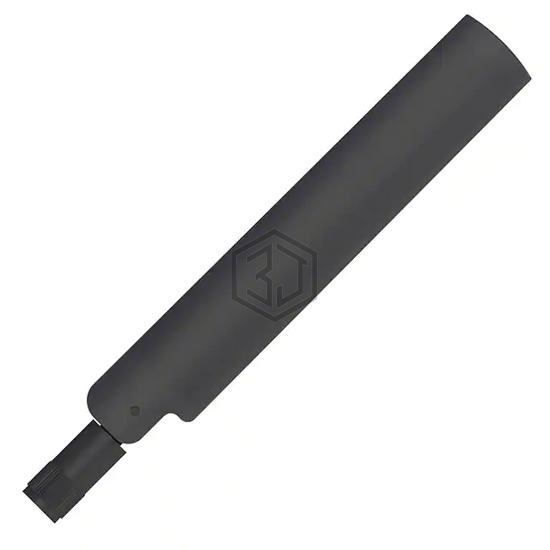

LTE BLADE SWIVEL DIPOLE SMA
ANT-LTE-WS-SMA is a RF Antennas manufactured by Linx Technologies Inc.. LTE BLADE SWIVEL DIPOLE SMA. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 15 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz.
In Stock: 8,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Blade, Tilt |
| Number of Bands | 4 |
| VSWR | 2, 2, 2, 2.5 |
| Return Loss | - |
| Gain | 4dBi, 5.8dBi, 3.1dBi, 4dBi |
| Power - Max | 15 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 5.366" (136.30mm) |
| Applications | CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G, IOT |
