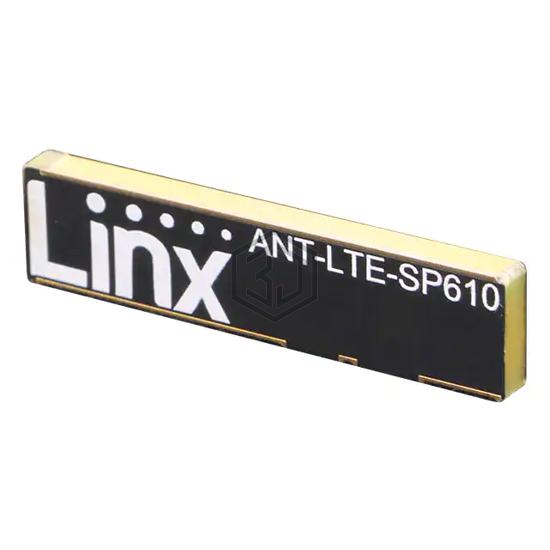

RF ANT LTE 698MHZ-2.7GHZ CHIP SL
ANT-LTE-SP610-T is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT LTE 698MHZ-2.7GHZ CHIP SL. Key specifications: mounting type Surface Mount, termination Solder, power - max 10 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz.
In Stock: 10,133
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz |
| Antenna Type | Chip |
| Number of Bands | 4 |
| VSWR | 3.4, 3.1, 3.0, 5.0 |
| Return Loss | -5.3dB, -5.8dB, -6.0dB, -3.5dB |
| Gain | 5.1dBi, 5.3dBi, 4.9dBi, 2.7dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.110" (2.80mm) |
| Applications | CAT-M1, Cellular, GSM, LTE, LTE-M, LPWA, NB-IOT, UMTS, 4G |
Submit your RFQ for ANT-LTE-SP610-T and get a quote within 24 hours.
