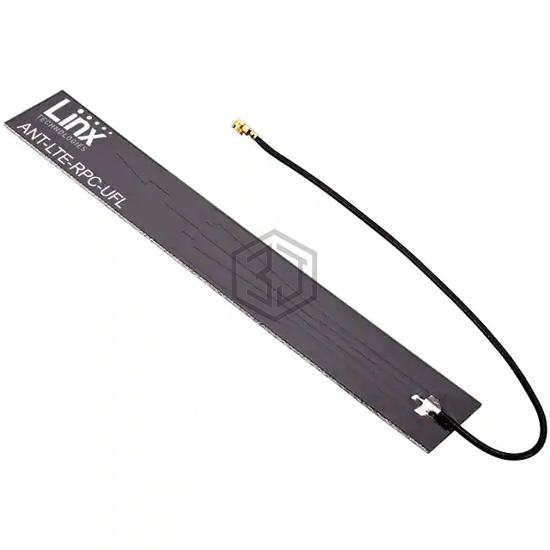

RF ANT LTE RIGID PCB ADHES UFL
ANT-LTE-RPC-UFL is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT LTE RIGID PCB ADHES UFL. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 600MHz ~ 3.8GHz.
In Stock: 1,659
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz |
| Frequency Range | 600MHz ~ 3.8GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 7 |
| VSWR | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 |
| Return Loss | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB |
| Gain | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.031" (0.80mm) |
| Applications | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
