RF ANT 617MHZ-3.8GHZ LTE TILT

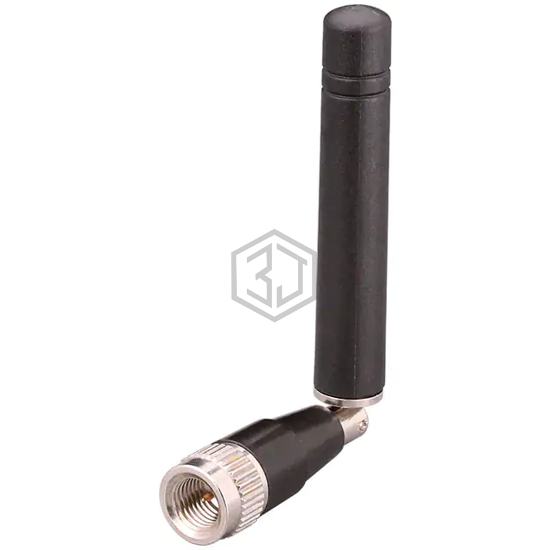

ANT-LTE-MON-SMA-L is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 617MHZ-3.8GHZ LTE TILT. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 10 W, frequency range 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Whip, Tilt/Swivel |
| Number of Bands | 7 |
| VSWR | 3.3, 2.2, 2.6, 3.2, 2.3, 1.9, 2.2 |
| Return Loss | -5.3dB, -8.5dB, -7dB, -5.6dB, -8.1dB, -10.1dB, -8.5dB |
| Gain | 3.4dBi, 4.8dBi, 5dBi, 3.9dBi, 3.4dBi, 4.1dBi, 4.6dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 3.100" (78.74mm) |
| Applications | 4G, CAT-M1, CBRS, Cellular, GSM, LTE, LTE-M, NB-IOT, LPWA, UMTS |
Submit your RFQ for ANT-LTE-MON-SMA-L and get a quote within 24 hours.
