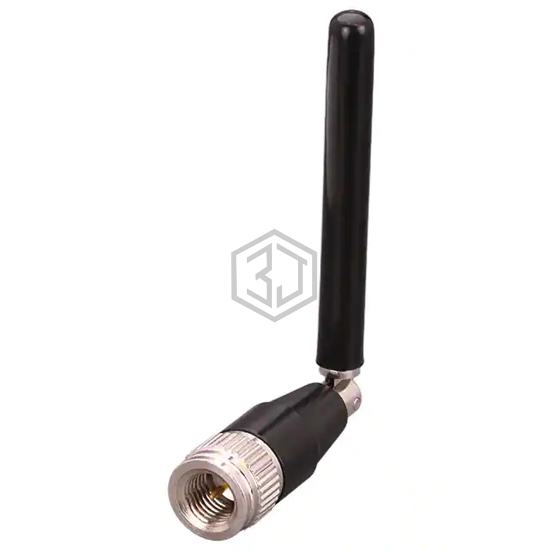

RF ANT 698MHZ-2.7GHZ TILT 72MM
ANT-LTE-MON-SMA-E is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 698MHZ-2.7GHZ TILT 72MM. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 10 W, frequency range 698MHz ~ 830MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz.
In Stock: 367
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz |
| Frequency Range | 698MHz ~ 830MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Whip, Tilt/Swivel |
| Number of Bands | 6 |
| VSWR | 2.2, 1.9, 3.6, 3.2, 1.3, 2.9 |
| Return Loss | -8.5dB, -10.1dB, -5dB, -5.6dB, -17.7dB, -6.2dB |
| Gain | 4.5dBi, 5.1dBi, 1.1dBi, 3.3dBi, 3.1dBi, 1.3dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 2.900" (72.40mm) |
| Applications | 4G, Beidou, Cat-M1, CDMA, GLONASS, GNSS, GPS, HSPA, LTE, LTE-M, NB-IoT, UMTS, WCDMA |
Submit your RFQ for ANT-LTE-MON-SMA-E and get a quote within 24 hours.
