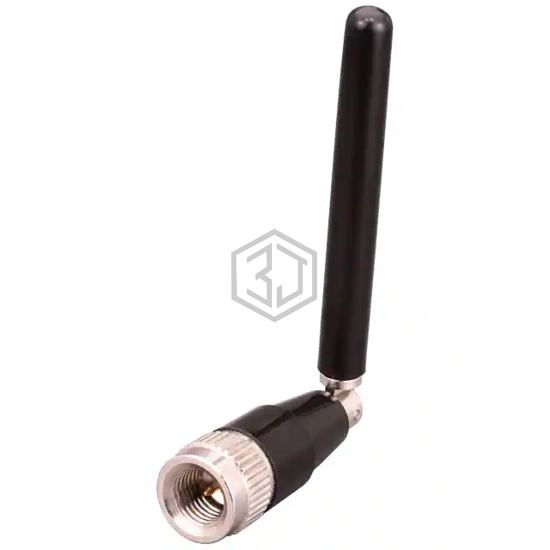

RF ANT 700MHZ/850MHZ WHIP TILT
ANT-LTE-MON-SMA is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 700MHZ/850MHZ WHIP TILT. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 15 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz.
In Stock: 4,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz,1.7GHz, 1.8GHz,1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz, 3.4GHz, 3.5GHz, 3.6GHz, 3.7GHz, 3.8GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz |
| Antenna Type | Whip, Tilt/Swivel |
| Number of Bands | 6 |
| VSWR | 2.5, 3.5, 4.5, 3.5, 2.5, 2.75 |
| Return Loss | - |
| Gain | 4.75dBi, 2.75dBi, 1.75dBi, 1dBi, 4.85dBi, 5.5dBi |
| Power - Max | 15 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | - |
| Applications | CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G |
Submit your RFQ for ANT-LTE-MON-SMA and get a quote within 24 hours.
