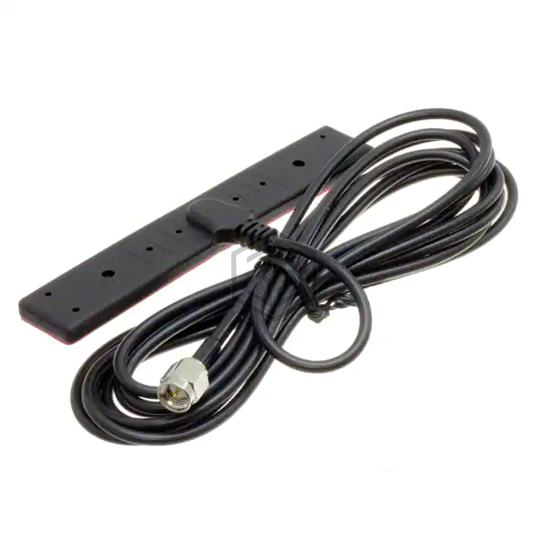

RF ANT 829MHZ/1.94GHZ WHIP CTR
ANT-LTE-HDP-2000-SMA is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 829MHZ/1.94GHZ WHIP CTR. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, power - max 10 W.
In Stock: 1,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Whip, Center-Fed Double |
| Number of Bands | 3 |
| VSWR | 1.75, 1.35, 1.3, 1.25 |
| Return Loss | - |
| Gain | 3.5dBi, 4.5dBi, 3.25dBi, 4.5dBi |
| Power - Max | 10 W |
| Features | Cable - 2m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.244" (6.20mm) |
| Applications | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
Submit your RFQ for ANT-LTE-HDP-2000-SMA and get a quote within 24 hours.
