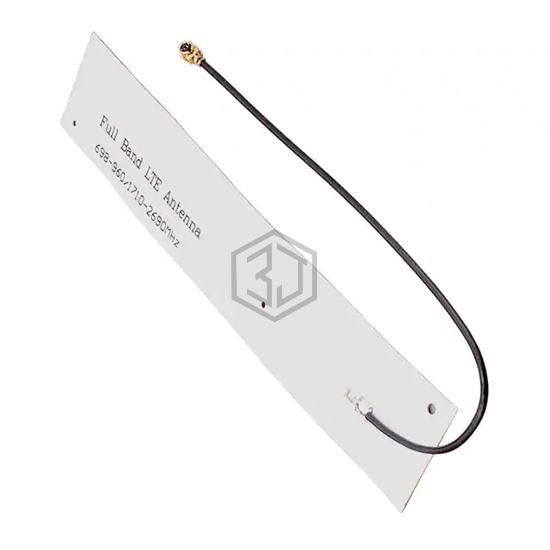

RF ANT LTE LPWA FLEX ADHES UFL
ANT-LPL-FPC-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT LTE LPWA FLEX ADHES UFL. Key specifications: mounting type Adhesive, termination IPEX MHF1 (U.FL), power - max 2 W, frequency range 696MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz.
In Stock: 4,355
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750MHz, 876MHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz |
| Frequency Range | 696MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 7 |
| VSWR | 2.3, 2.4, 4.6, 1.4, 1.8, 3.5 |
| Return Loss | -8.1dB, -7.7dB, -3.8dB, -15.6dB, -10.9dB, -5.1dB |
| Gain | 5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | IPEX MHF1 (U.FL) |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.010" (0.20mm) |
| Applications | 4G, 5G, LTE |
