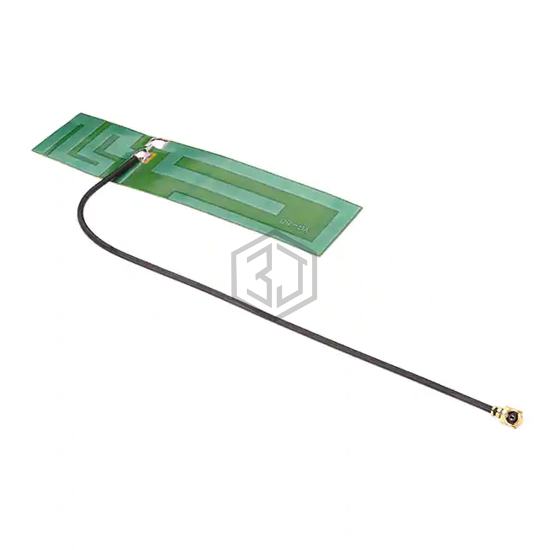

RF ANT LTE CBRS FLEX ADHES UFL
ANT-LPC-FPC-150 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT LTE CBRS FLEX ADHES UFL. Key specifications: mounting type Adhesive, termination IPEX MHF1 (U.FL), power - max 2 W, frequency range 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz.
In Stock: 1,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz |
| Frequency Range | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 8 |
| VSWR | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 |
| Return Loss | - |
| Gain | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi |
| Power - Max | 2 W |
| Features | Cable - 150mm |
| Termination | IPEX MHF1 (U.FL) |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | General Purpose |
