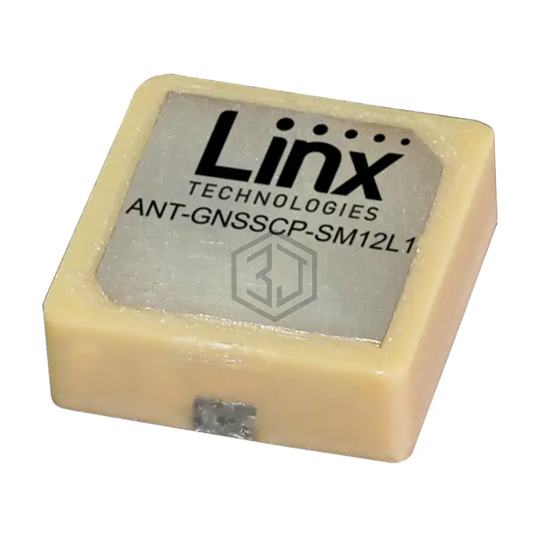

RF ANT GNSS PATCH L1 12X12 SMD
ANT-GNSSCP-SM12L1 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT GNSS PATCH L1 12X12 SMD. Key specifications: mounting type Surface Mount, termination Solder, power - max 8 W, frequency range 1.567GHz ~ 1.609GHz.
In Stock: 1,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Frequency Range | 1.567GHz ~ 1.609GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 2 |
| VSWR | 7, 6.1 |
| Return Loss | -2.5dB, -2.9dB |
| Gain | 2.9dBi, 1dBi |
| Power - Max | 8 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
Submit your RFQ for ANT-GNSSCP-SM12L1 and get a quote within 24 hours.
