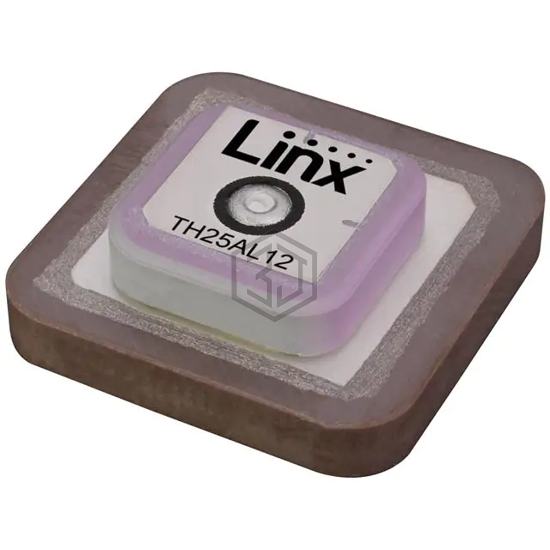

RF ANT GNSS PATCH L1 L2 25MM PIN
ANT-GNCP-TH25AL12 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT GNSS PATCH L1 L2 25MM PIN. Key specifications: mounting type Solder, termination Pin, power - max 8 W, frequency range 1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz.
In Stock: 949
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.228GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.601GHz |
| Frequency Range | 1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 5 |
| VSWR | 12.1, 4.5, 5, 5, 2.1 |
| Return Loss | -1.4dB, -4dB, -3.5dB, -3.5dB, -9.1dB |
| Gain | -1.9dBi, -0.9dBi, 0.9dBi, 3.1dBi, 4dBi |
| Power - Max | 8 W |
| Features | - |
| Termination | Pin |
| Ingress Protection | - |
| Mounting Type | Solder |
| Height (Max) | 0.315" (8.00mm) |
| Applications | Beidou, COMPASS, Galileo, GLONASS, GPS |
Submit your RFQ for ANT-GNCP-TH25AL12 and get a quote within 24 hours.
