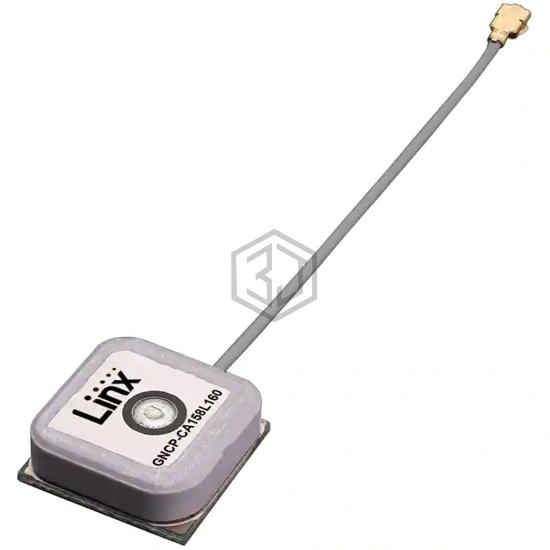

RF ANT GNSS GPS 18MM PATCH LNA
ANT-GNCP-CA158L160 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT GNSS GPS 18MM PATCH LNA. Key specifications: mounting type Surface Mount, termination U.FL (UMCC), IPEX MHF1, frequency range 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz.
In Stock: 423
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz |
| Frequency Range | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 4 |
| VSWR | 1.4, 1.5, 2.4, 3.5 |
| Return Loss | - |
| Gain | 6.7dBi, 13.9dBi, 13.9dBi, 12.4dBi |
| Power - Max | - |
| Features | Cable - 60mm, LNA |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.260" (6.60mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
