RF ANT GNSS L1L2L5 25X25 LNA UFL

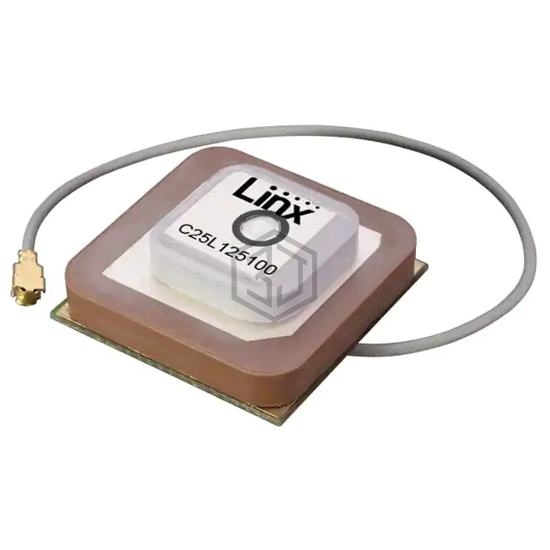

ANT-GNCP-C25L125100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT GNSS L1L2L5 25X25 LNA UFL. Key specifications: mounting type Surface Mount, termination U.FL, frequency range 1.1164GHz ~ 1.189GHz, 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz.
In Stock: 506
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.176GHz, 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz |
| Frequency Range | 1.1164GHz ~ 1.189GHz, 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 7 |
| VSWR | 2.2, 1.4, 1.6, 1.3, 1.4, 1.4, 1.4 |
| Return Loss | -8.4dB, -15.6dB, -13.2dB, -17.5dB, -15.4dB, -15.4dB, -16.4dB |
| Gain | 29.1dBi, 18.2dBi, 26.6dBi, 10.4dBi, 25.3dBi, 26.9dBi, 23.9dBi |
| Power - Max | - |
| Features | Cable - 100mm |
| Termination | U.FL |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.472" (12.00mm) |
| Applications | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
Submit your RFQ for ANT-GNCP-C25L125100 and get a quote within 24 hours.
