RF ANT GNSS GPS L1L2 25X25 LNA

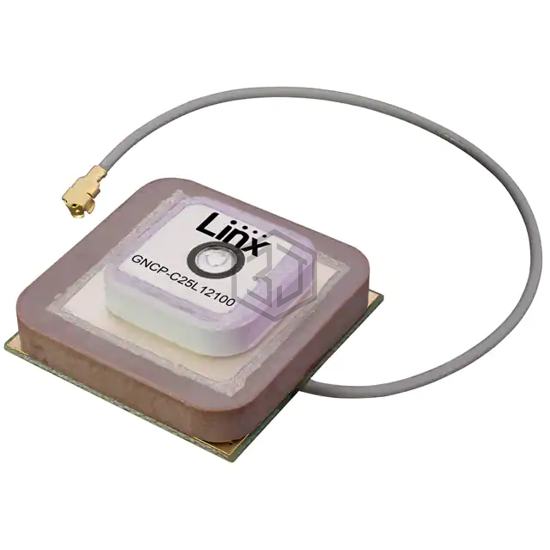

ANT-GNCP-C25L12100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT GNSS GPS L1L2 25X25 LNA. Key specifications: mounting type Surface Mount, termination U.FL, frequency range 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz.
In Stock: 192
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz |
| Frequency Range | 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 6 |
| VSWR | 2.2, 2.3, 1.4, 1.6, 1.6, 1.4 |
| Return Loss | -8.4dB, -8dB, -15.1dB, -12.7dB, -12.7dB, -15.4 |
| Gain | 27.9dBi, 28.1dBi, 15.9dBi, 25.9dBi, 27.6dBi, 23.8dBi |
| Power - Max | - |
| Features | Cable - 100mm |
| Termination | U.FL |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.472" (12.00mm) |
| Applications | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
Submit your RFQ for ANT-GNCP-C25L12100 and get a quote within 24 hours.
