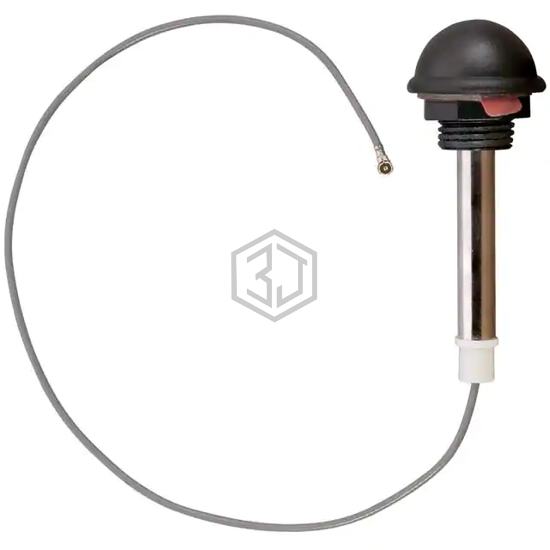

RF ANT 2.4/5GHZ WRT UFL -100
ANT-DB1-WRT-UFL-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 2.4/5GHZ WRT UFL -100. Key specifications: mounting type Panel Mount, termination U.FL (UMCC), IPEX MHF1, power - max 5 W, frequency range 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4425GHz, 5.5GHz, 6.525GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Dome |
| Number of Bands | 3 |
| VSWR | 1.9, 3.7, 4 |
| Return Loss | - |
| Gain | 3.2dBi, 6.8dBi, 7dBi |
| Power - Max | 5 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 0.394" (10.00mm) |
| Applications | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
Submit your RFQ for ANT-DB1-WRT-UFL-100 and get a quote within 24 hours.
