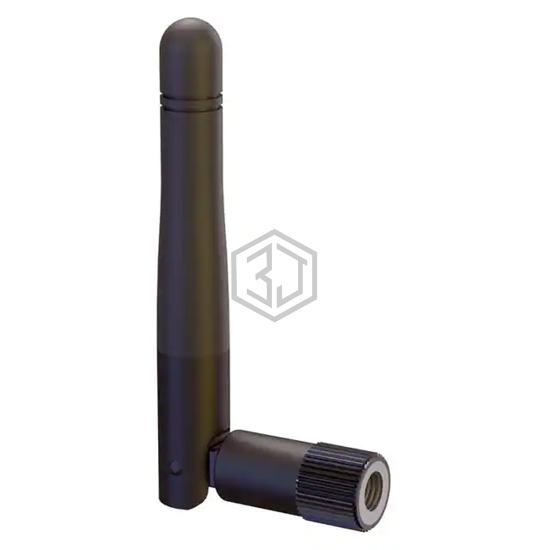

2.4/5.8GHZ DIPOLE ANTENNA SMA
ANT-DB1-LCD-SMA is a RF Antennas manufactured by Linx Technologies Inc.. 2.4/5.8GHZ DIPOLE ANTENNA SMA. Key specifications: mounting type Connector Mount, termination SMA Male, power - max 10 W, frequency range 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz.
In Stock: 1,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz |
| Antenna Type | Whip, Tilt |
| Number of Bands | 3 |
| VSWR | 1.9 |
| Return Loss | - |
| Gain | 2.8dBi, 2.92dBi, 4.5dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 3.272" (83.10mm) |
| Applications | ISM, U-NII, WiFi, WLAN |
Submit your RFQ for ANT-DB1-LCD-SMA and get a quote within 24 hours.
