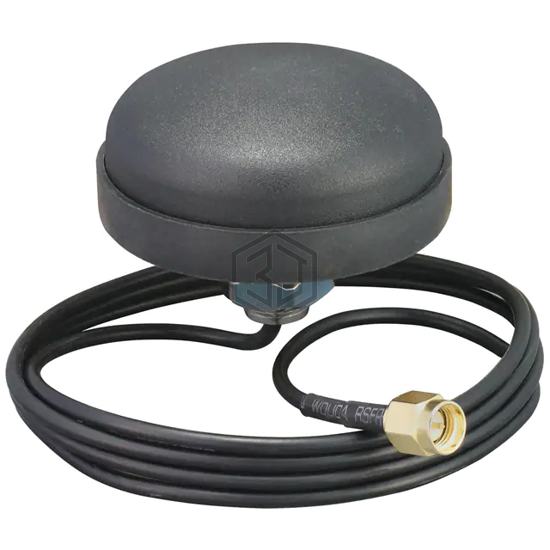

RF ANT 5G/4G/LTE PUCK 1M SMA
ANT-5GW-SPS1-1 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 5G/4G/LTE PUCK 1M SMA. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP65, IP67, power - max 15 W.
In Stock: 938
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 418MHz, 460MHz, 788.5MHz, 1.9475GHz, 2.35GHz, 2.593GHz, 3.75GHz, 5.1625GHz |
| Frequency Range | 410MHz ~ 426MHz, 450MHz ~ 470MHz, 617MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5.925GHz |
| Antenna Type | Dome |
| Number of Bands | 8 |
| VSWR | 1.3, 1.6, 1.8, 2.2, 2.9, 3 |
| Return Loss | - |
| Gain | -0.1dBi, -4.2dBi, 5.4dBi, 3.8dBi, 4.2dBi, 2.7dBi, 2.7dBi, 5.1dBi |
| Power - Max | 15 W |
| Features | Cable - 1m |
| Termination | SMA Male |
| Ingress Protection | IP65, IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 0.917" (23.30mm) |
| Applications | 2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi |
Submit your RFQ for ANT-5GW-SPS1-1 and get a quote within 24 hours.
