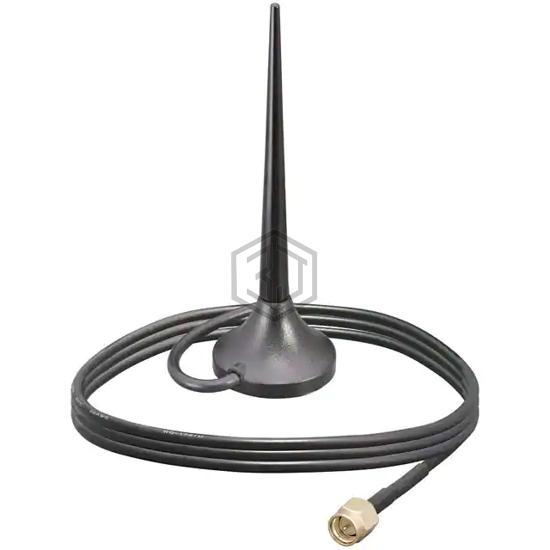

RF ANT 5G CELLULAR MAG 2M SMA
ANT-5GW-MMG2-SMA-2 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 5G CELLULAR MAG 2M SMA. Key specifications: mounting type Magnetic, termination SMA Male, power - max 10 W, frequency range 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz.
In Stock: 8,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 9 |
| VSWR | 1.6, 2.3, 2.4, 2.5, 2.8, 3.1, 5.7 |
| Return Loss | - |
| Gain | -0.5dBi, 3.4dBi, 3.4dBi, 3.3dBi, 0.7dBi, 3.2dBi, 3.6dBi, 4.7dBi, 2.4dBi |
| Power - Max | 10 W |
| Features | Cable - 2m |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Magnetic |
| Height (Max) | 3.484" (88.50mm) |
| Applications | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
Submit your RFQ for ANT-5GW-MMG2-SMA-2 and get a quote within 24 hours.
