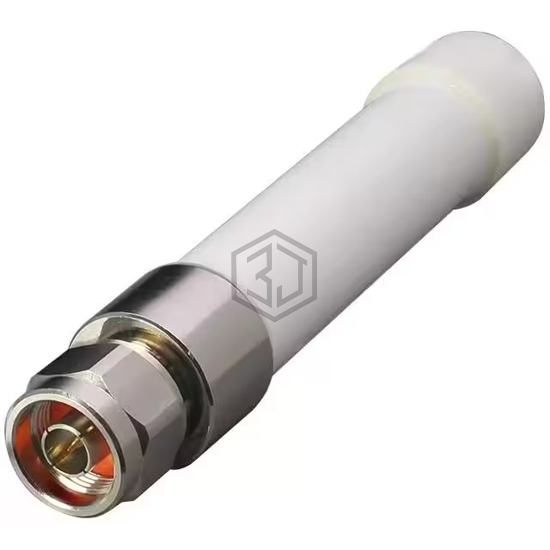

RF ANT 5G/4G/LTE WHIP N PLUG
ANT-5GW-IPW2-NP is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 5G/4G/LTE WHIP N PLUG. Key specifications: mounting type Connector Mount, termination N Type Male, ingress protection IP67, power - max 2 W.
In Stock: 471
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 10 |
| VSWR | 8.1, 8.5, 3.9, 2.4, 1.8, 1.7, 1.9, 1.6, 1.8, 2.7 |
| Return Loss | -2.2dB, -2.1dB, -4.6dB, -7.7dB, -10.9dB, -11.7dB, -10.2dB, -12.7dB, -10.9dB, -6.8dB |
| Gain | 1dBi, 1.5dBi, 1.6dBi, 1.2dBi, 1.6dBi, 1.5dBi, 0.5dBi, 2.4dBi, 2.4dBi, 3.7dBi |
| Power - Max | 2 W |
| Features | - |
| Termination | N Type Male |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Height (Max) | 5.200" (132.00mm) |
| Applications | 5G, LTE, LTE-M (Cat-M1), NB-IoT |
