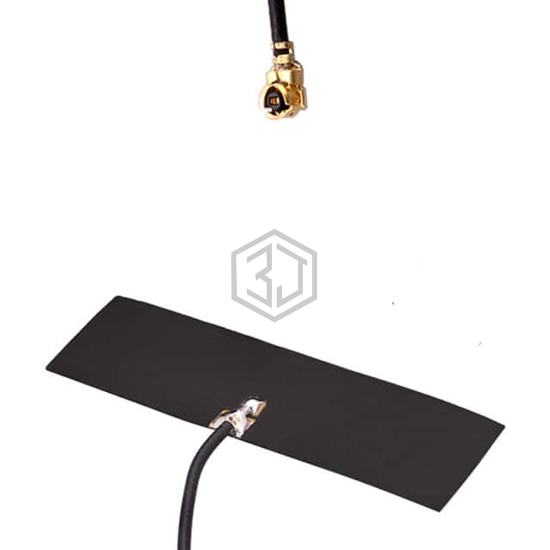

RF ANT 2-5GHZ 5G FLEX ADHES UFL
ANT-5GMFPC1-UFL-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 2-5GHZ 5G FLEX ADHES UFL. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz.
In Stock: 865
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.3GHz, 2.496GHz, 3.3GHz, 3.55GHz, 3.7GHz, 4.4GHz |
| Frequency Range | 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 6 |
| VSWR | 3.2, 1.8, 1.7, 1.7, 1.6, 1.4 |
| Return Loss | -5.6dB, -10.9dB, -11.7dB, -11.7dB, -12.7dB, -15.6dB |
| Gain | 3dBi, 4.7dBi, 4.8dBi, 4.8dBi, 5.9dBi, 6.7dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | 5G, Cellular, LTE |
Submit your RFQ for ANT-5GMFPC1-UFL-100 and get a quote within 24 hours.
