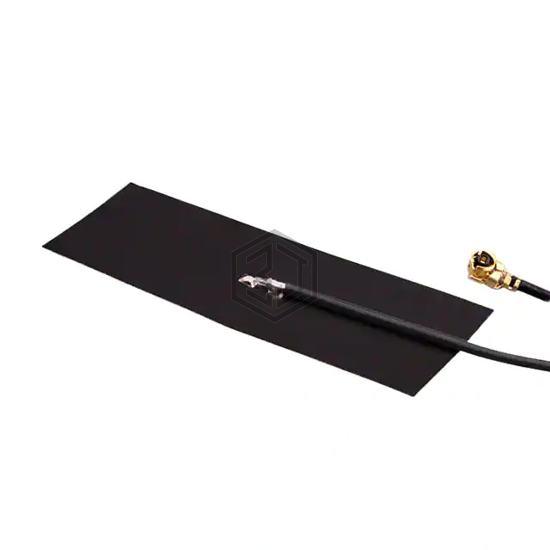

RF ANT 433MHZ 5G FLEX ADHES UFL
ANT-433-FPC-UFL-100 is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 433MHZ 5G FLEX ADHES UFL. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 410MHz ~ 430MHz, 430MHz ~ 435MHz, 450MHz ~ 470MHz.
In Stock: 815
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | General ISM |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 410MHz, 433MHz, 450MHz |
| Frequency Range | 410MHz ~ 430MHz, 430MHz ~ 435MHz, 450MHz ~ 470MHz |
| Antenna Type | Flat Patch |
| Number of Bands | 3 |
| VSWR | 4.1, 2.5, 3.4 |
| Return Loss | -4.3dB, -7.4dB, -5.3dB |
| Gain | -5.4dBi, -6dBi, -2.4dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.010" (0.20mm) |
| Applications | ISM, LoRaWAN, LPWA |
Submit your RFQ for ANT-433-FPC-UFL-100 and get a quote within 24 hours.
