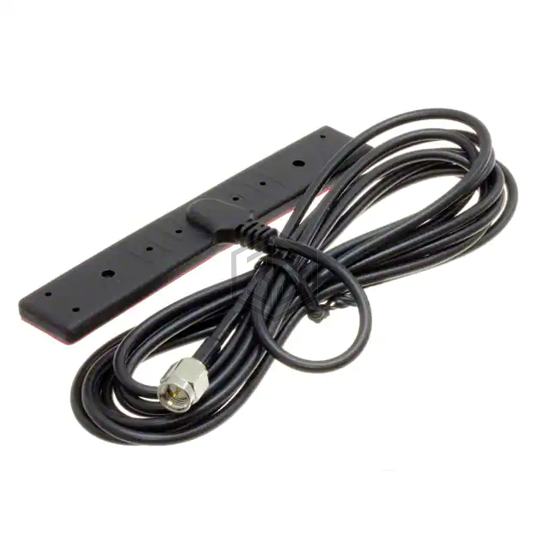

RF ANT 2.4GHZ/5.42GHZ FLAT CTR
ANT-2/5-HDP-2000-RPS is a RF Antennas manufactured by Linx Technologies Inc.. RF ANT 2.4GHZ/5.42GHZ FLAT CTR. Key specifications: mounting type Adhesive, termination RP-SMA Male, ingress protection IP67, power - max 10 W.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 3 |
| VSWR | 1.9 |
| Return Loss | - |
| Gain | 4dBi, 1.5dBi, 1.5dBi |
| Power - Max | 10 W |
| Features | Cable - 2m |
| Termination | RP-SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.244" (6.20mm) |
| Applications | Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII |
Submit your RFQ for ANT-2/5-HDP-2000-RPS and get a quote within 24 hours.
