LTC3809-1 - NO RSENSE, LOW EMI D

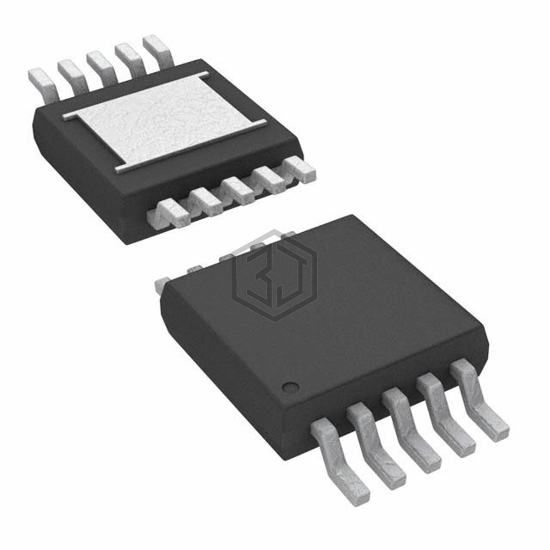

LTC3809EMSE-1#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Linear Technology. LTC3809-1 - NO RSENSE, LOW EMI D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 2.75V ~ 9.8V, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 562
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V |
| Frequency - Switching | 550kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
LTC3809EMSE-1#PBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3809IDD-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 10DFN | 100% | View |
| LTC3809EDD-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 10DFN | 100% | View |
| LTC3772EDDB#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 8DFN | 100% | View |
| LTC3772ETS8#TRMPBF | Analog Devices Inc. | IC REG CTRLR BUCK TSOT23-8 | 100% | View |
| LTC3809EDD-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 10DFN | 100% | View |
| LTC3801BES6#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK TSOT23-6 | 98% | View |
Submit your RFQ for LTC3809EMSE-1#PBF and get a quote within 24 hours.
