LTC3775 - HIGH FREQUENCY SYNCHRO

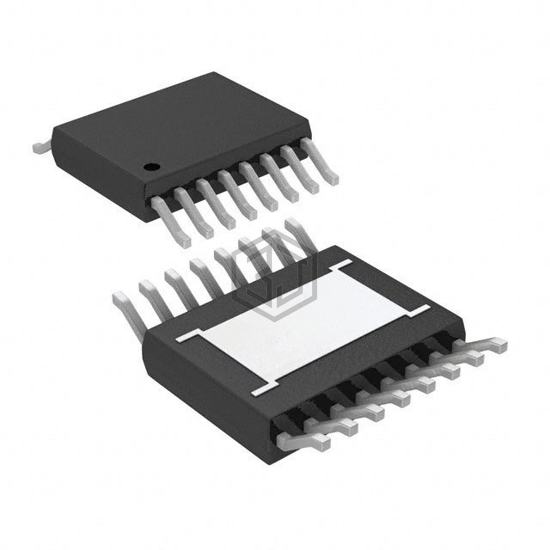

LTC3775IMSE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Linear Technology. LTC3775 - HIGH FREQUENCY SYNCHRO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 16-TFSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 250kHz ~ 1MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
LTC3775IMSE#PBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3866IUF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 100% | View |
| LTC3883IUH-1#WPBF | Analog Devices Inc. | 1X PHBUCK DC/DC CNTR W/ DIG PWR | 100% | View |
| R1272S001A-E2-FE | Nisshinbo Micro Devices Inc. | 34V INPUT PWM/VFM STEP-DOWN DCDC | 99% | View |
| LTC3851IUD#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16QFN | 99% | View |
| LTC3851AIUD-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16QFN | 96% | View |
| LTC3865IUH-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 84% | View |
Submit your RFQ for LTC3775IMSE#PBF and get a quote within 24 hours.
